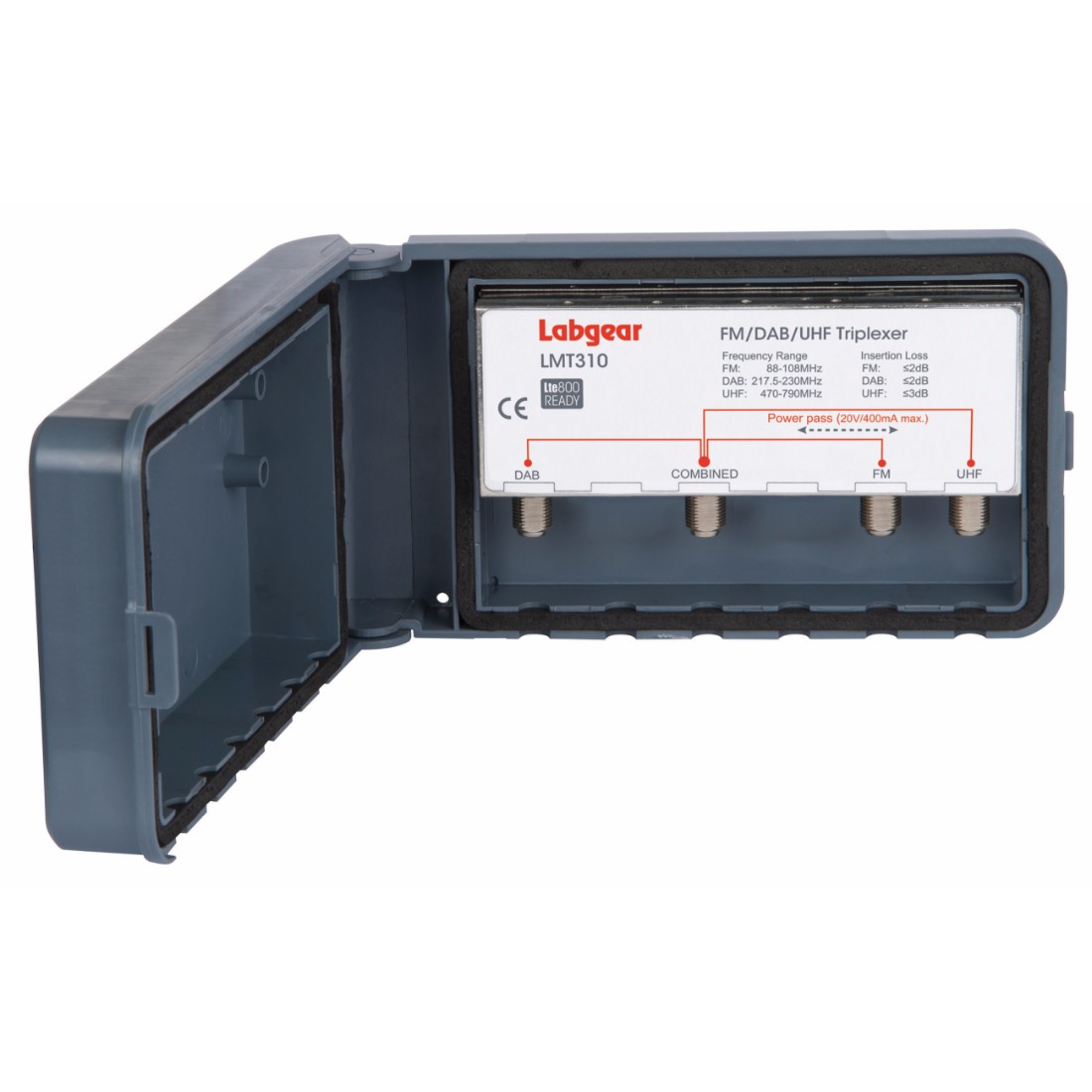

Triplexer FM, DAB & UHF - LMT310
Description
The LMT310 is a Triplexer Filter used to combine the source signals of FM Radio, DAB Radio and UHF TV.
The LMT310 has 3/4G filter on the UHF TV input.
Features
- Fully screened housing
- F-type connections
- Weather Proof housing
- Sturdy metal mast clamp
- The triplexer has filters for each input to prevent interference
- The triplexer will enable the combineing of indipendent signal source of FM Radio, DAB Radio and UHF TV
- LTE800 filtering on UHF input
Specification
| FM input Filtered to receive: | 88-108 MHz | |
| DAB input Filtered to receive: | 217.5-230 MHz | |
| UHF TV input Filtered to receive: | 470-790 MHz | |
| Inband insertion loss VHF/UHF: | < 2dB | |
| Return loss VHF: | 12dB | |
| Return loss UHF: | 10dB | |
| Isolation between bands VHF/UHF: | > 25dB | |
| Maximum DC line power Pass: | 20V 400mA |
