20 Element Log-Periodic TV Aerial, TX20L
Item Code : TX20L
Product Details
Terrestrial TV Aerial

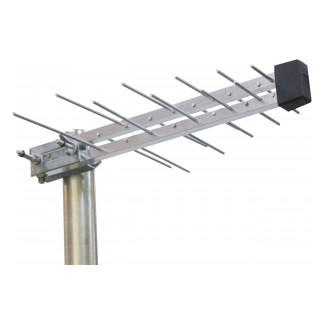

Triax - 20 Element Log-Periodic TV Aerial, TX20L
Item Code: TX20L
Bar Code: 5702661081859
Brand: Triax
Manufacturer: Triax
TX20L
Description
This Log-Periodic UHF TV Aerial Model TX20L is suitable for poor reception conditions, where reflections are prominent but where signal level is high. The TX20L comes with a rear mounted F-connector. The TX20L has a wideband flat response with very good impulse noise rejection enabling stable digital reception. The TX20L is of rugged construction for enduring service.
Features
- Frequency: 470...862 MHz
- Channel: 21-69 (wideband)
- Impedance: 75ohm
- Number of Elements: 20
- Gain: 4...9 dBi
- Front to back ratio: >12dB
- Length: 395mm
Specification
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702661081859 |
| CHARACTERISTICS | |
| Type | Log Periodic 20 element |
| FREQUENCY | |
| Band | B IV/V UHF |
| Channels | 21...69 |
| Frequency range UHF | 470...862 MHz |
| GAIN | |
| Gain | 4...9 dBi |
| Gain @ 474 MHz (Ch. 21) | 5 Typ dBi |
| Gain @ 602 MHz (Ch. 37) | 8.0 typ dBi |
| Gain @ 786 MHz (Ch. 60) | 4.8 Typ dBi |
| LOSS | |
| Rejection @ 862 MHz (LTE U6) | 5.5 Typ dB |
| ELECTRICAL | |
| Front to back ratio - horisontal | >12 dB |
| Impedance | 75 Ω |
| CONNECTORS | |
| Connector Type | F-female |
| MECHANICAL | |
| Elements | 20 |
| Main material | Aluminium |
| Packaging Height | 0,050 m |
| Packaging Width | 0,295 m |
| Packaging Depth | 0,395 m |
| Packaging Volume | 0,006 m3 |
| Net Weight | 0,340 kg |
| Tara Weight | 0,100 kg |
| Total Weight | 0,440 kg |
| Remarks | VSWR: <4.2 |
